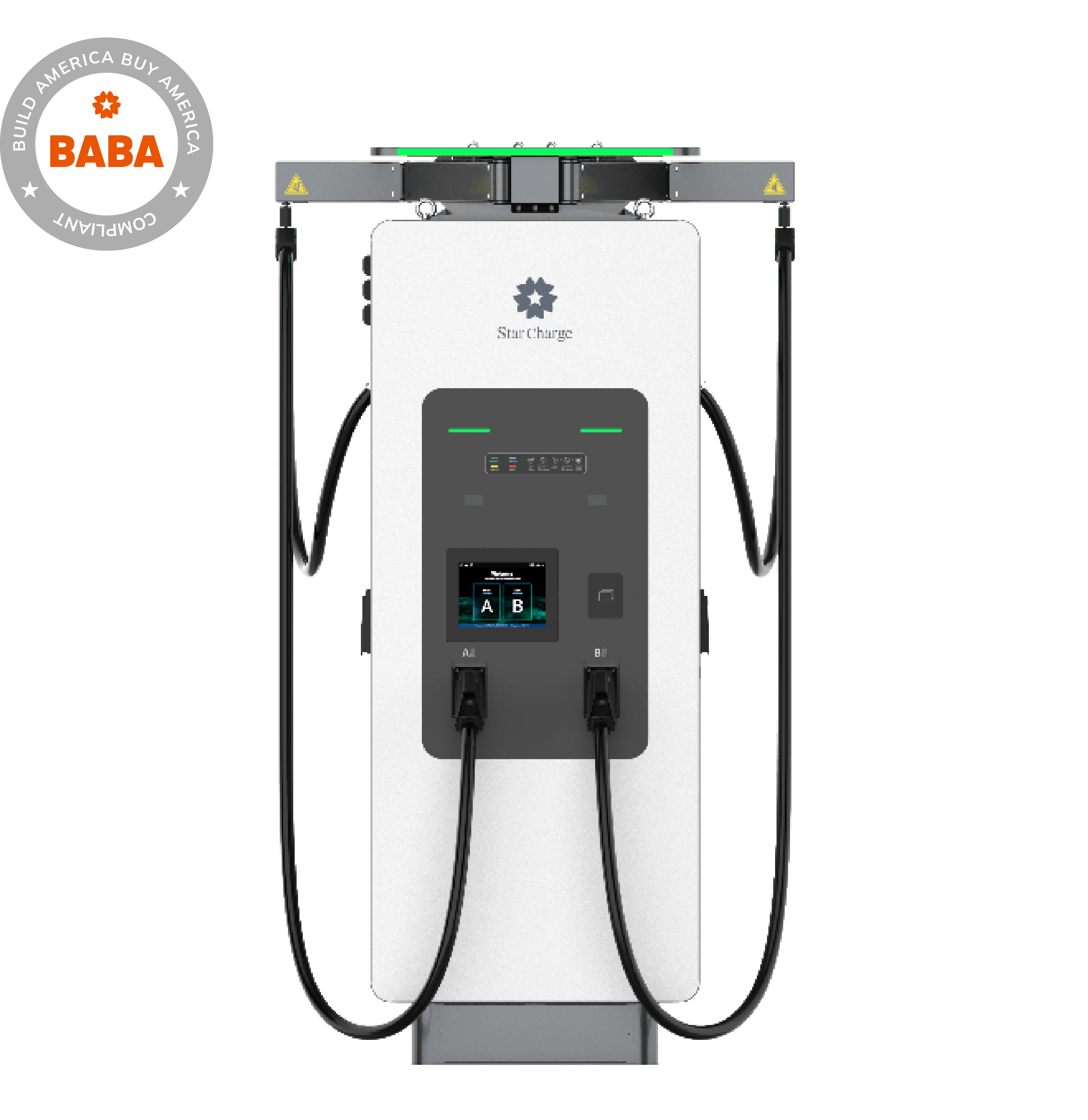

Titan V4
DC All-in-One High Power Charger, 240-320KW
Titan V4 is an all-in-one high-power EV charger. It features industry leading power efficiency of 97% that significantly reduces power loss and energy costs while adding 2% to 3% profit to charging station operations. The modular design makes it scalable from 240kw to 320kw in the field and offers high availability to ensure continuous charging service. The dynamic power distribution design enables maximum energy usage and optimal charging speed, enhancing the overall charging service. It’s ideal for public charging station offering 5 to 30 minutes’ drive-through charging services.
- Highway
- Retail
- Public Parking
Maximum Power
- With a peak efficiency of 97% and up to 500A per single connector, the Titan V4 offers dynamic power distribution for optimal performance.
Customizability
- Fully customizable to CPO's branding, user interface, power distribution logic, and bespoke software & app development.
User-friendly
- Featuring an ergonomically designed cable management system, this solution reduces operating force while extending the operating range. It includes a large screen with an intuitive user interface for easy interaction, and overhead indicators to display charging availability and status.
Serviceability & Availability
- The Smart OMC Maintenance platform enables faster diagnostics, reducing maintenance costs through efficient single-person operation. Its modular power module design further enhances uptime availability, ensuring reliable and uninterrupted performance.
Titan V4
- Input Rating: 400V a.c. ±15%, 3 Phase, 50/60Hz, L1+L2+L3+PE+N (N is optional)
- Input Current Rating: AC 481A for 320kW output / AC 421A for 280kW output/AC 361A for 240kW output
- Efficiency: 97%
- Output Interface: CCS2+CCS2 (simultaneous charging)
- Protocol: OCPP 1.6J (OCPP2.0 could be updated in the future)
Protection Grade: IP55，IK10 (Screen is IK08)
Charging Cable Length: 5m or 6m (optional) - Dimension (W x H x D): 800 x 2050 x 750mm / 1259 x 2225 x 800mm (with cable management system)
- Weight: Approx. 410kg (excluding power modules)
- Certification: CE, CB
