Neptune
High Power Cabinet
Max.500A output current. Up to 360 kW output power per connector. 150-1000Vdc wide output voltage range. Great scalability, up to 4 charging points per power cabinet. Support two cabinets connected in parallel.
- Fleet
- Convenience
- Destination
- Public Parking
Applicability
- Wide output range from 150 to 1000 VDC, suitable for almost all electric vehicles.
High Power
- 500A max. output current with liquid cooling system. 360kW max. per connector.
Lower Noise
- 58dB at the user unit under full-load operation.
Safety & Protection
- Multiple electrical protection and a remarkable protection level up to IP55 & IK10.
Space-saving
- Small footprint of user units, back-to-back and side-by-side installation are available for power cabinet.
Convenience
- Automatic cable management system, user-friendly and operator-friendly.
Neptune
- Input Rating: 480Vac±10%, 3 phases, 50/60Hz, L1+L2+L3+N+PE (Support without Neutral)
- Output Power: 360kW max.
- Output Current: 500A max.
- Efficiency: 95%
- Protection Grade: IP55，IK10
- Dimension (W x H x D): 3.44 x 6.73 x 2.46′
- Weight: Approx. 992.08 lb (excluding power modules)
- Certification: TUV, FCC, Energy Star, CTEP, OCA
Neptune (Natural Cooling)
- Output Power: 400kW max./connector
- Output Voltage: 150-1000Vdc
- Output Current: 250A (400A max. )/connector
- Output Interface: CCS1+NACS, NACS+NACS, CCS1+CCS1
- Protocol: OCPP 1.6J
- Protection Grade: IP55，IK10
- Charging Cable Length: 19‘ 8″
- Dimension (W x H x D): 41 1/4″ x 86 5/8″ x 27 7/8″
- Weight: Approx. 507.06 lb
- Certification: TUV, FCC, Energy Star, CTEP

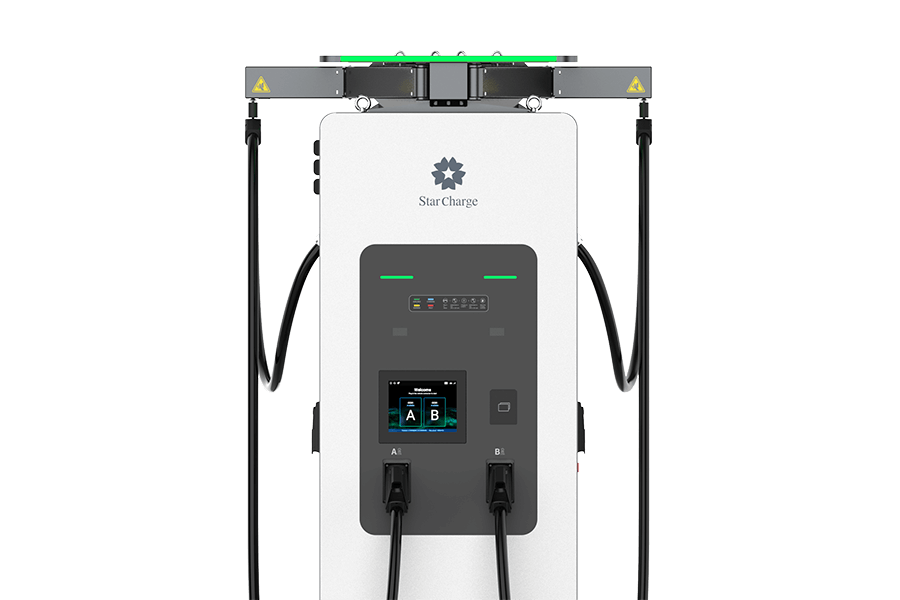

Neptune (Liquid Cooling)
- Output Power: 480kW max./connector
- Output Voltage: 150-1000Vdc
- Output Current: 500A (600A max. )/connector
- Output Interface: CCS1+NACS, NACS+NACS, CCS1+CCS1
- Protocol: OCPP 1.6J
- Protection Grade: IP55，IK10
- Charging Cable Length: 16‘ 5″
- Dimension (W x H x D): 41 1/4″ x 86 5/8″ x 27 7/8″
- Weight: Approx. 573 lb
- Certification: TUV, FCC, Energy Star, CTEP
